Doohan’s innovative technology

Safe and Stable

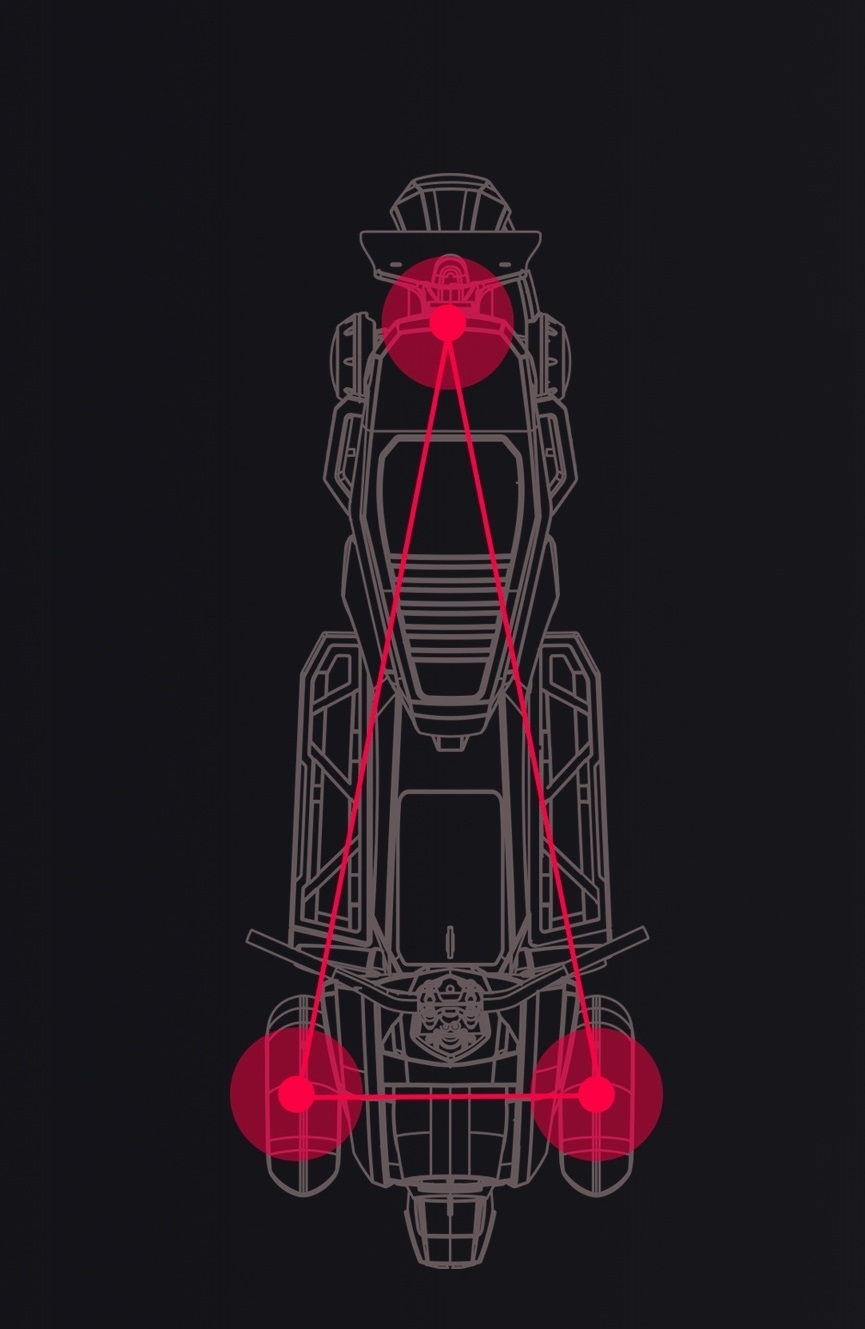

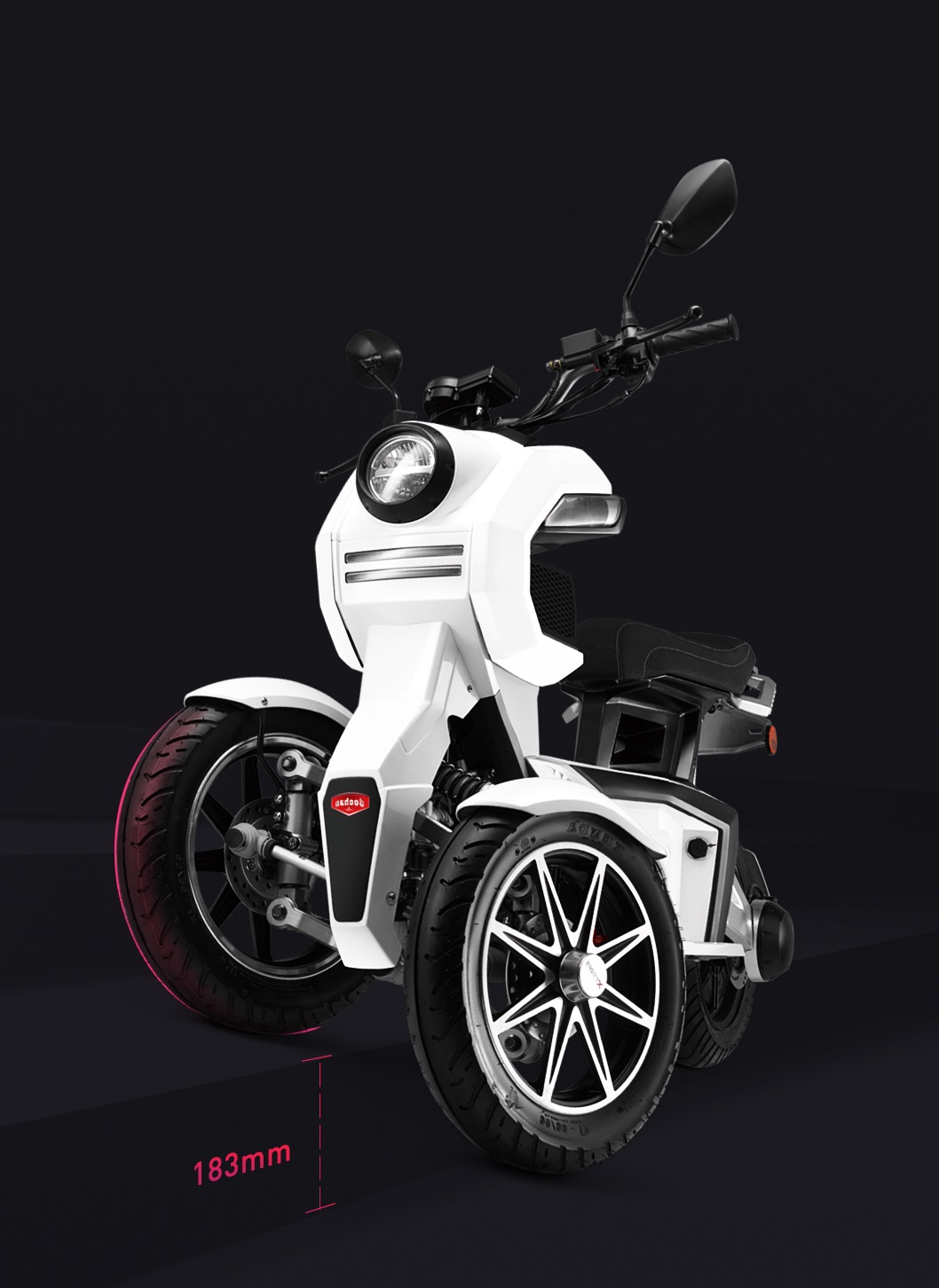

Golden triangle structure

Stable equilibrium and fantastic driving experience.

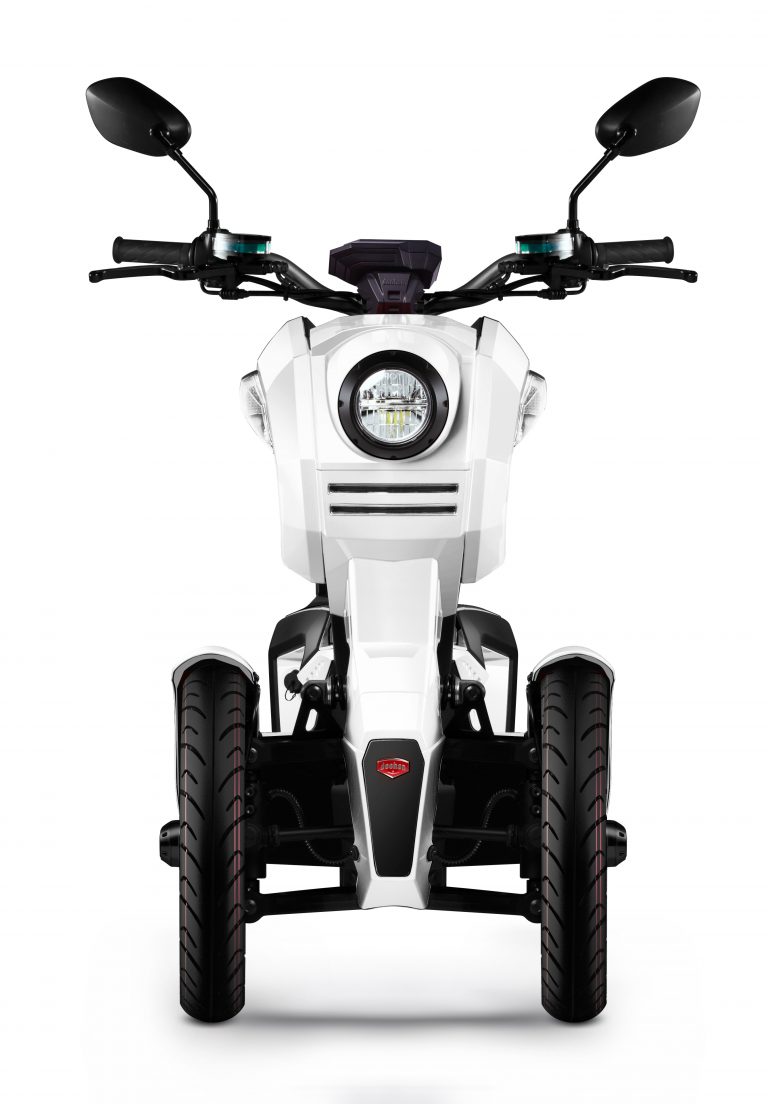

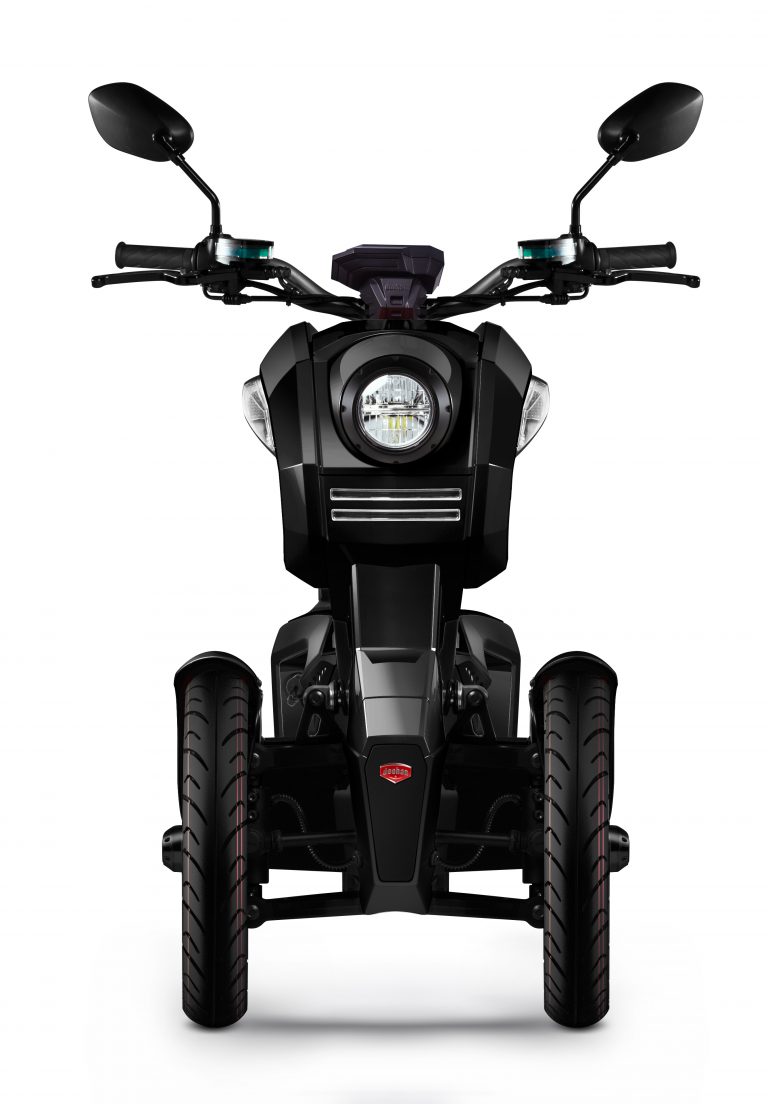

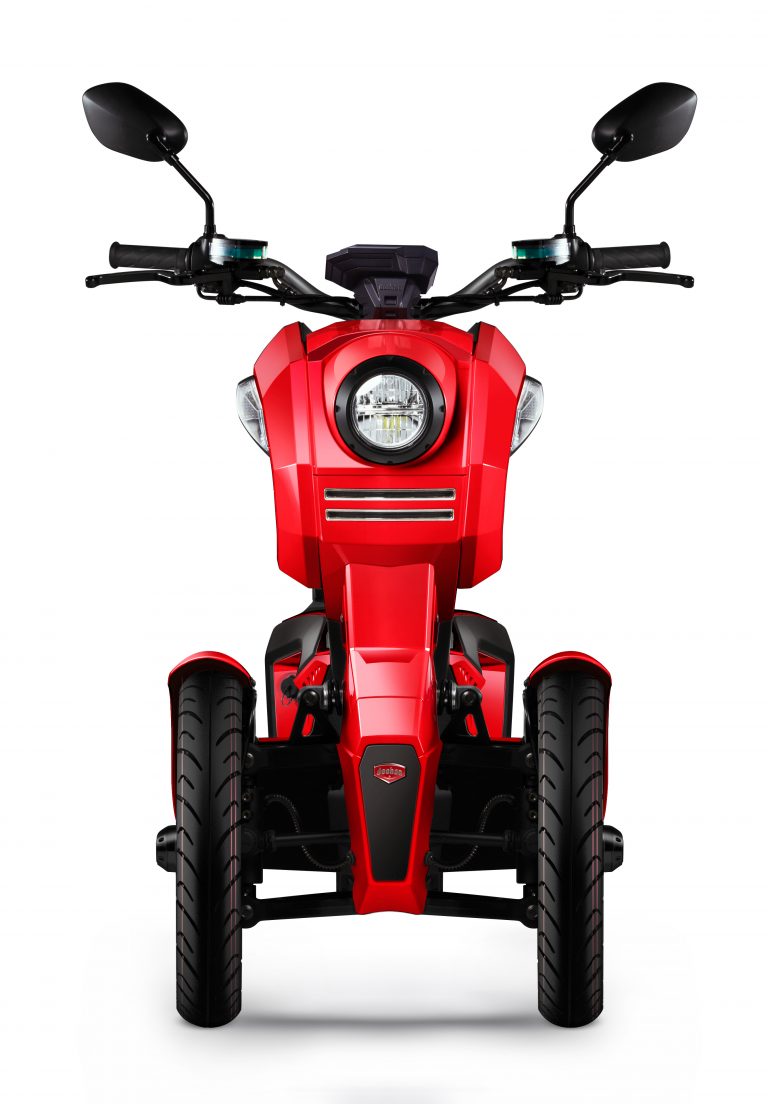

Dual front wheels

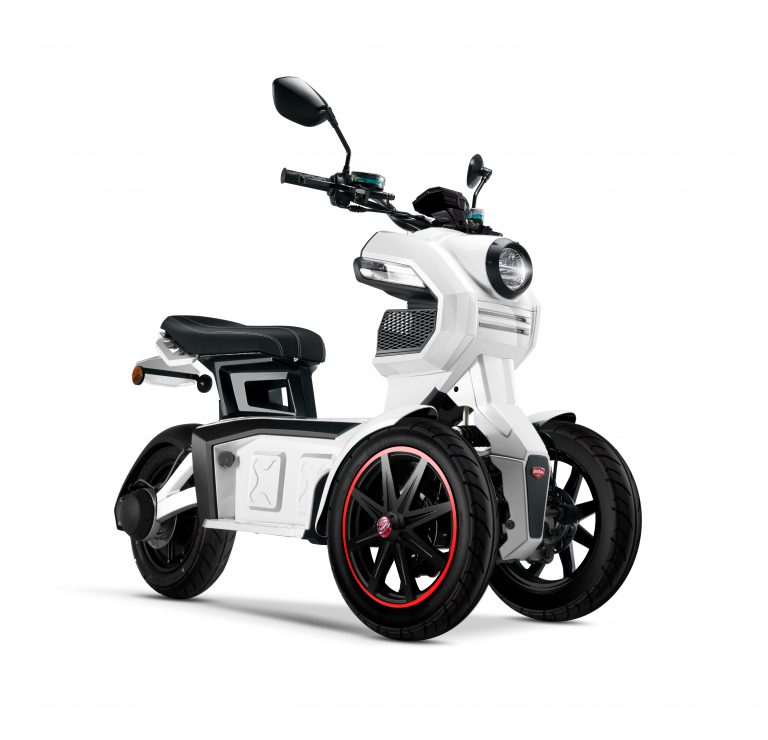

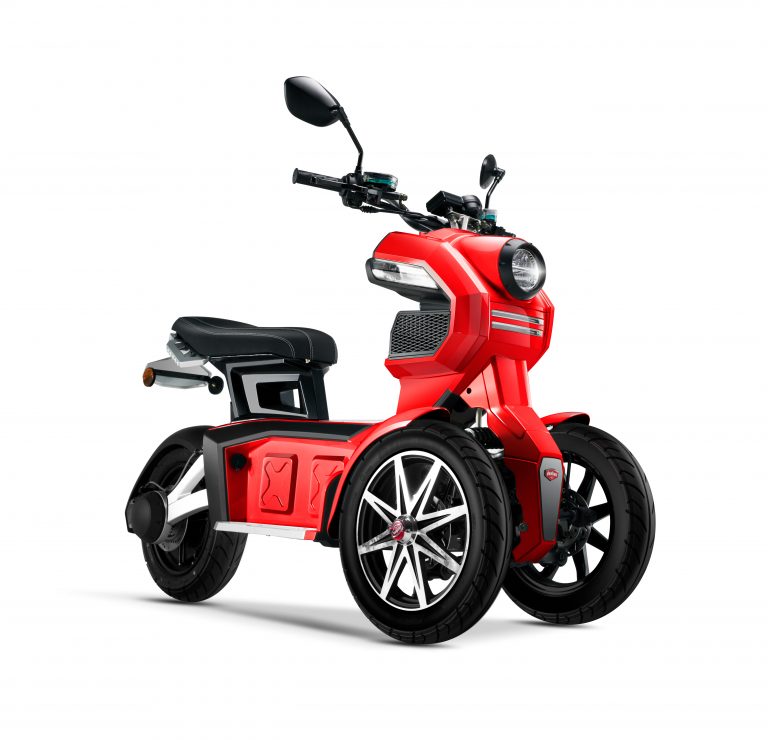

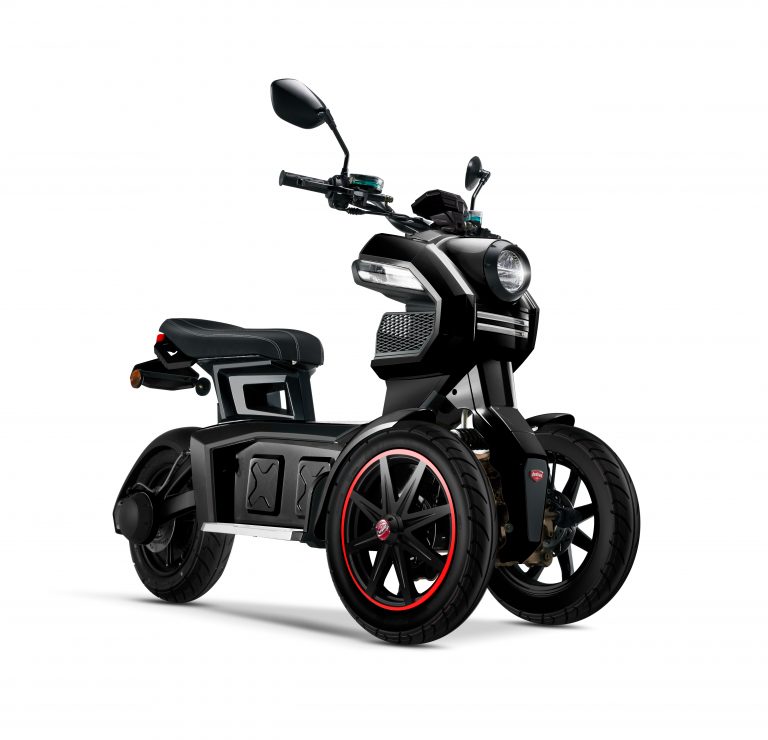

DDWT is an innovative technology, under exclusive patent from Doohan. The iTank is the first smart scooter with Dual-front-wheels in China, redefining driving safety.

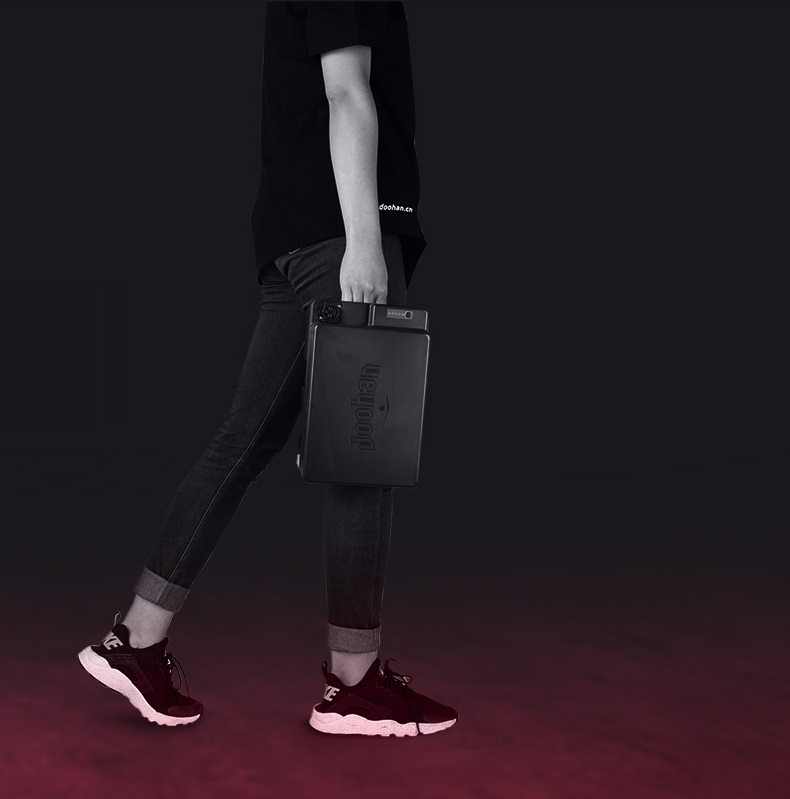

Panasonic or LG Lithium battery

1490W BOSCH motor

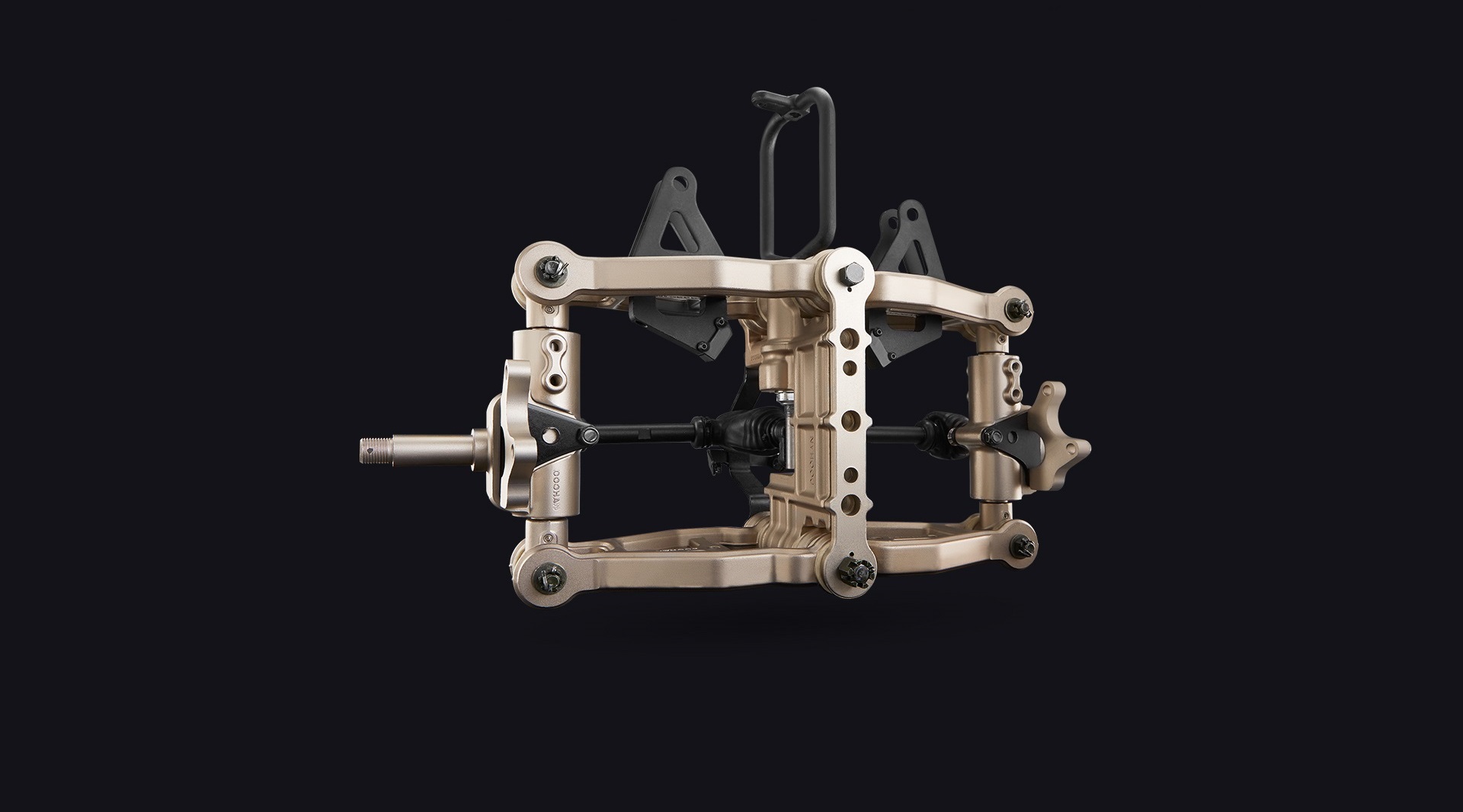

DDWT - Doohan Dual Wheel Technology

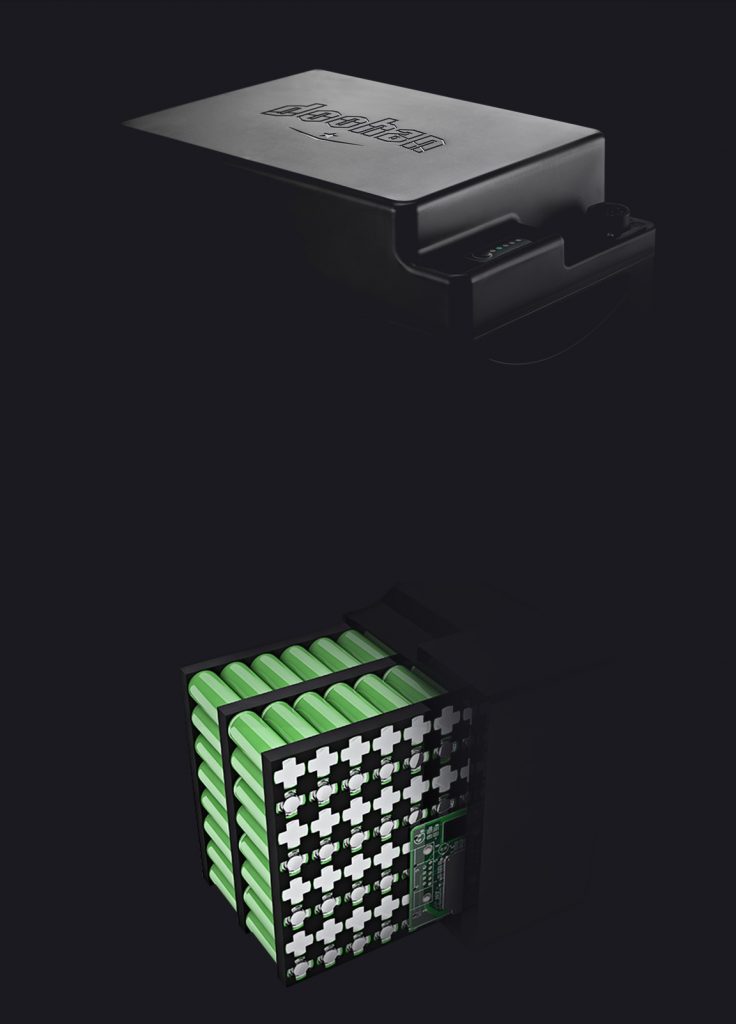

BMS - Safe and Stable

Strong and stable braking system

The iTank is equipped with a triple hydraulic-disc braking system to ensure short range braking distance and with 80mm – 120mm tires, it is excellent for all road conditions.

Customize top brands

Evolve Excellence

Powered by Panasonic/LG Chem batteries in excellent collaboration with a customized motor from motor manufacturing experts Bosch, an enhanced driving experience is provided.

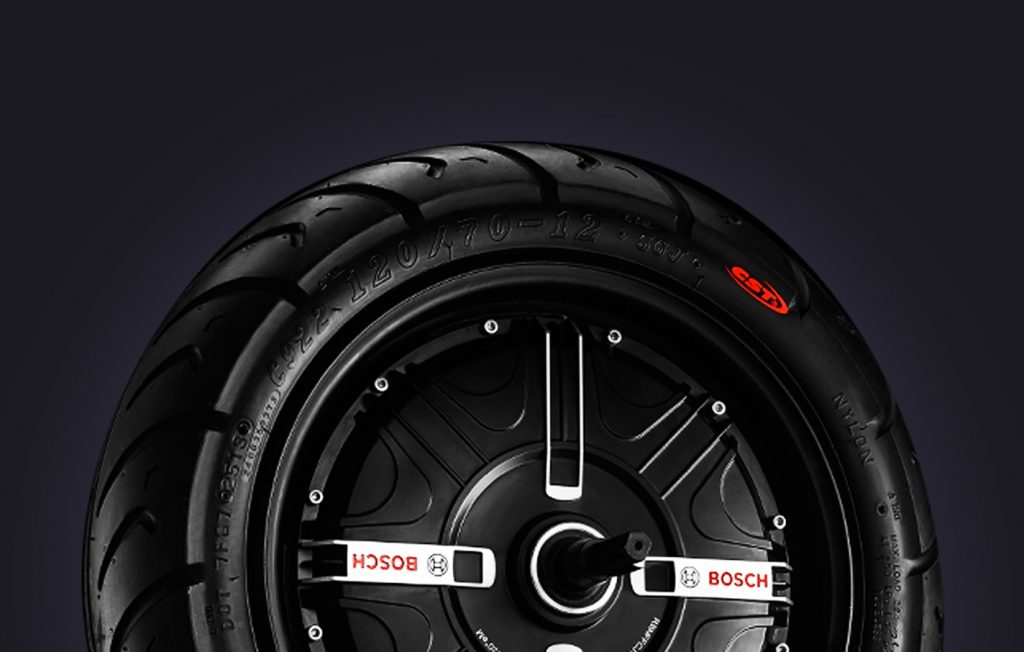

Customized motor from Bosch

We customize the high-performance wheel – hub motors from Bosch: 1852W power,120N.M Maximum Torque,15 climbing angle,90% energy conversion rate.

 iTankiTank DB45iTank DB70
Size (LxWxH):1780mm x 730mm x 1030mm1780mm x 730mm x 1030mm1780mm x 730mm x 1030mm
Wheel Base:1250mm1250mm1250mm
Track Front:460mm460mm460mm
Curb Weight:99kg108kg108kg
Rated Voltage60V60V60V
Maximum loading:160kg160kg160kg
Gradeability:<25% (Loading: 80 kg)<25% (Loading: 80 kg)<25% (Loading: 80 kg)
Standard Power Consumption:1.7kw/h1.7kw/h1.7kw/h
Range:45km(45km/h), 70km(25km/h)90km(45km/h), 140km(25km/h)60km(70km/h)
Top Speed:First Gear:25km/h Second Gear:45km/hFirst Gear:25km/h Second Gear:45kmIh70km/h(max speed)
Braking Distance:Dry Road:<2m(20km/h) <3.5m (30km/h)
Dry Road:<3.5m(30km/h) <4m (30km/h)
Dry Road:<2m(20km/h) <3.5m (30km/h)
Dry Road:<3.5m(30km/h) <4m (30km/h)
Dry Road:<2m(20km/h) <3.5m (30km/h)
Dry Road:<3.5m(30km/h) <4m (30km/h)
Front Absorber:Oil-filledOil-filledOil-filled
Rear Absorber:Oil-filledOil-filledOil-filled
Front Tire:80/100-12 x 290/90-12 x 290/90-12 x 2
Rear Tire:120/70.12120/70-12120/70-12
Front Brake Model:160mm Dual piston caliper Disc Brake160mm Dual piston caliper Disc Brake160mm Dual piston caliper Disc Brake
Rear Brake Model:190mm Dual piston caliper Disc Brake190mm Dual piston caliper Disc Brake190mm Dual piston caliper Disc Brake
Minimum Ground Clearance:130mm130mm130mm
Seat Height:750mm750mm750mm
Maximum Leaning Angle:<30°<30°<30°
Maximum Steering Angle:<32.5°<32.5°<32.5°

 iTankiTank DB45iTank DB70
Battery Type:18650 Ternary Lithium Battery18650 Ternary Lithium Battery18650 Ternary Lithium Battery
Voltage:60V60V60V
Battery Capacity:26Ah26Ah x 226Ah x 2
Standard Charge Current:4A4A4A
Maximum Discharge Current:75A75A75A
Standard Charging Time:6h-7h6h-7h x 26h-7h x 2
Battery Weight:9kg9kg x 29kg x 2
Charge & Discharge Times:600 times600 times600 times
Ambient Temperature Range, Battery Using: -20°C to 60°C-20’C to 60°C-20’C to 60°C
Ambient Temperature Range, Battery Storage:-20°C to 60°C-20°C to 60°C-20°C to 60°C
Ambient Temperature Range. Battery Charging:0°C to 45`C-20’C to 60°C-20’C to 60°C
Battery Protection System:Overdischarge protection,
short-circuit protection,
temperature protection,
overcharge protection,
current surge protection,
balanced battery-charging protection.
Overdischarge protection,
short-circuit protection,
temperature protection,
overcharge protection,
current surge protection,
balanced battery-charging protection.
Overdischarge protection,
short-circuit protection,
temperature protection,
overcharge protection,
current surge protection,
balanced battery-charging protection.

 iTankiTank DB45iTank DB70
Motor Type:BOSCHBOSCHQS/BOSCH
Rated Power:1490W1490W3000W
